Nonin Pulse Oxymeter

What It Is

Nonin engaged with the consultancy I worked with to quickly design a new shell and screen for their next generation wrist oxymeter. This product is meant to be used by clinics to measure patient's blood oxygen content, over an extended period, as an out-patient.

When I Did It

2009

What I Did

I conceptualized and designed the shell, with other product designers, along with the fixed segment UI (sole designer).

• Conceptualize industrial designs

• Devise component layouts

• Task analysis

• Screen design & specification

How I Did It

• Pencil and Paper

• Adobe Creative Suite

• Client Engagement (Engineering and Product/Marketing)

What Happened

• Metrics are unavailable/proprietary.

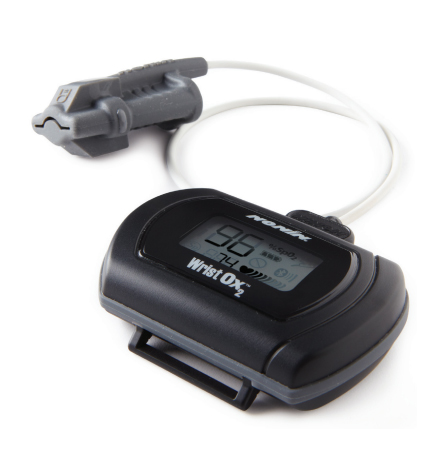

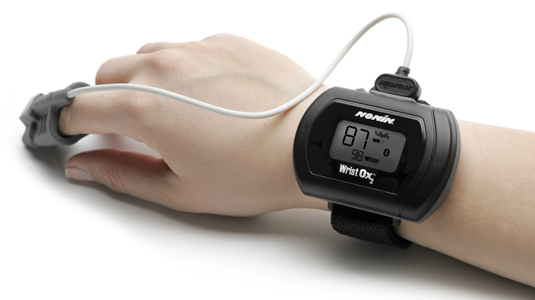

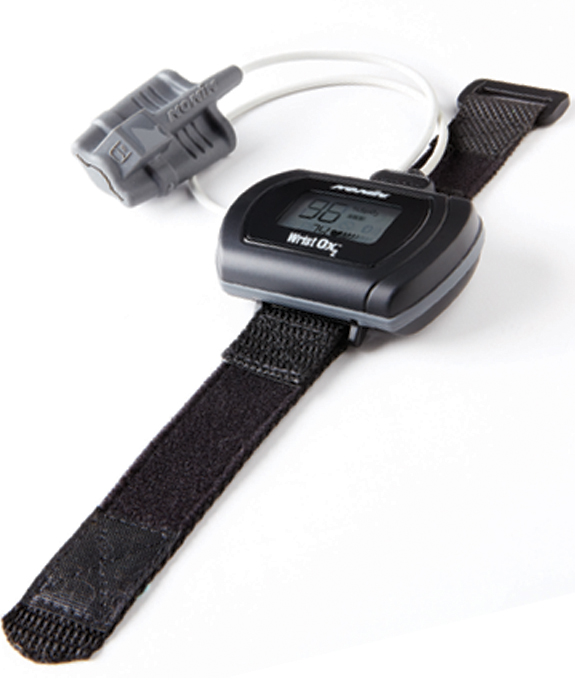

The WristOx2™, Model 3150, Pulse Oxymeter

The shipped version's shell was primarily designed by Matt Goulet, while the screen was designed by me.

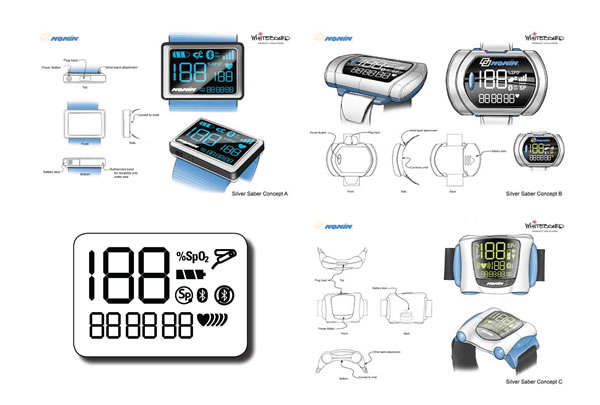

Oxymeter Concept

This design was chosen as a finalist for the final product. The client thought it would be more difficult to manufacture than the ultimate winner.

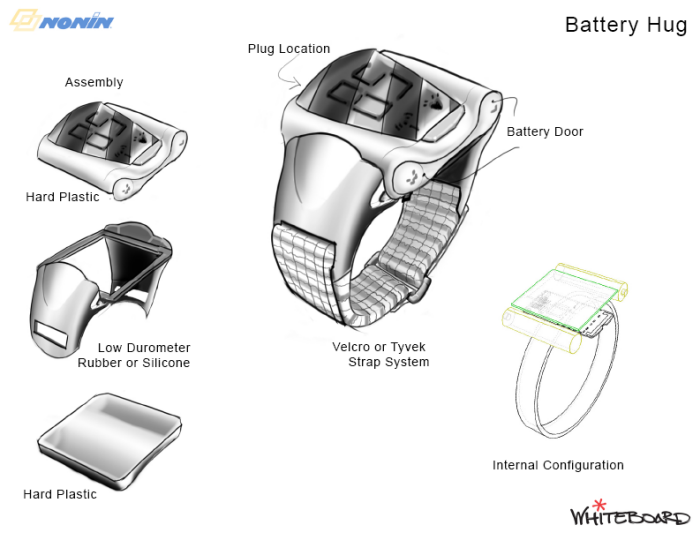

Oxymeter Concept

Another of the concepts I designed for the project.
